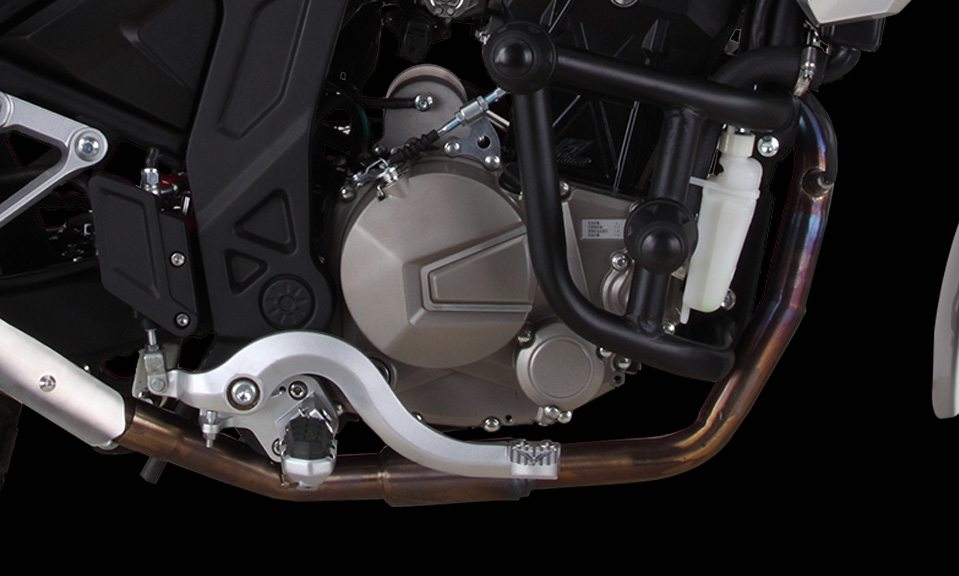

The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable.
FULL SPEED
Good shock absorption
High precision parts
ABS brake
The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable.
Let the knight experience the feeling of flowing clouds and water while riding.
The front shock absorption adopts hydraulic damping type shock absorption, with moderate rebound damping, while the rear shock absorption adopts central shock absorption, which is more balanced and accurate when turning and bending. Stable curve performance gives excellent playability.

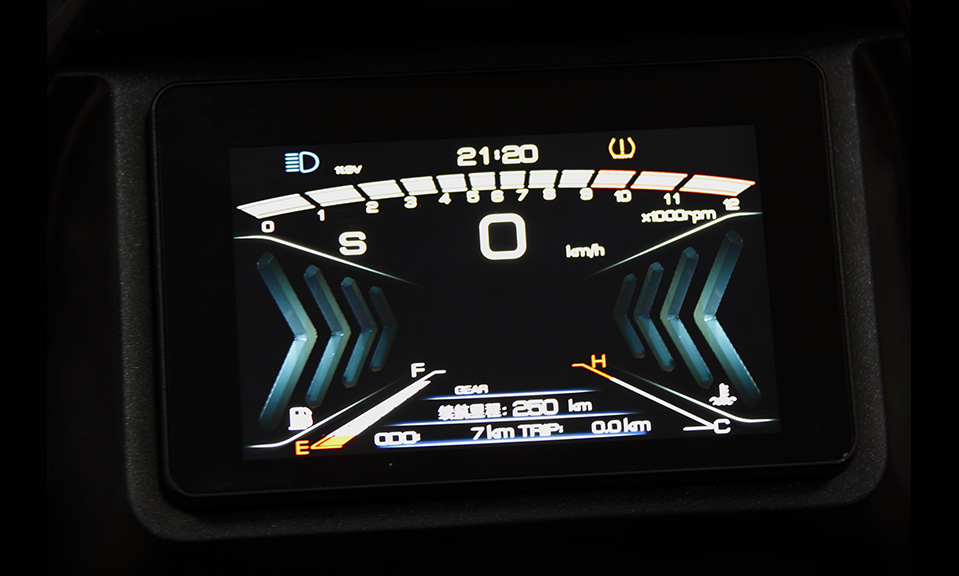

Use for reference the upgrade design of large displacement motorcycle instrument, color adjustable multi-function instrument.

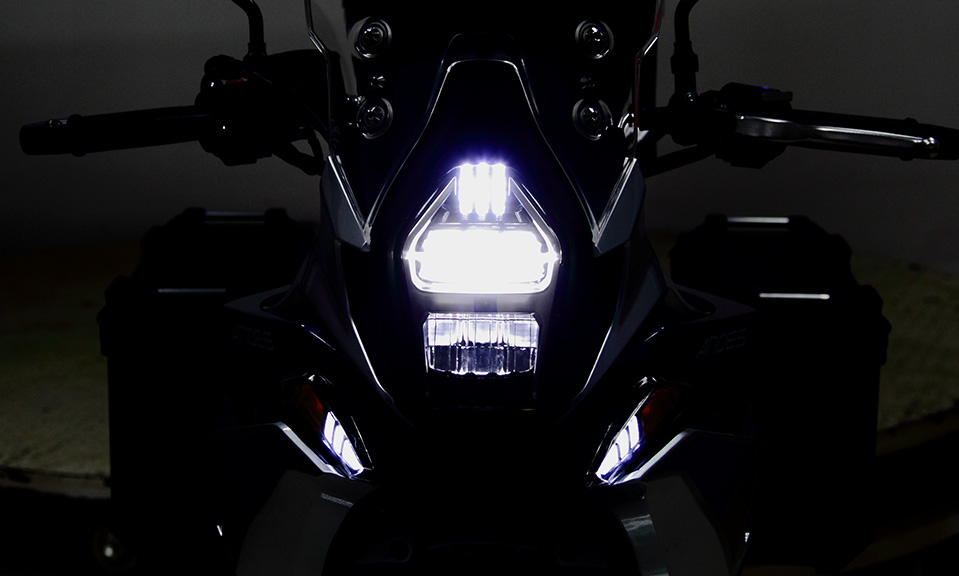

The headlights adopt the current LED light source design used in mid to high-end cars, and the white light scattered by the LED not only has a visual effect, but also brings good safety protection.
Road test conditions include terrain (mountain, road, gravel, snow, mud, plateau) and climate (-20c to 50C) to ensure vehicle safety and stability.
km
km
km
km
km
km
km
UT3.5 off-road Gasoline | UT3.5 Rally Gasoline | |
Dimension | 2160×785×1210mm | 2160×860×1370mm |
Wheel Base | 1390 mm | 1410 mm |
Weight | 165kg | 181kg |
Front seat height | 850mm | 850mm |
Rear seat height | 925mm | 925mm |
Engine | CG200D Balancer | 300cc Water cooling |
Braking mode | FR Disc & RR Disc / ABS system | FR Disc & RR Disc / ABS system |
Minimum Groud clearance | >235mm | >235mm |
Standard load | 100Kg | 100Kg |
Maximum load | 150Kg | 150Kg |
Front suspension | Front:Forward | Front:Invert |
Rear suspension | Rear:Single | Rear:Single |
Wheel | Aluminum | Aluminum |
Seat | Whole type | Seperate type |
Starter | Electric | ECU |
Electric security | / | / |
Steering lock | Mechanical | Mechanical |
Max Speed | ≥105km/h | ≥120km/h |
Fuel Capacity(L) | 16L | 16L |
Tyres | FR90/90-19 ;RR120/90-17 | FR90/90-19 ;RR120/90-17 |
Braking distance | <7M(30Km/h) | <7M(30Km/h) |
Battery | 12V8.6Ah Mainteniace free | 12V8.6Ah Mainteniace free |
Oil consumption | 2.2L/100km | 3.5L/100km |
Max Power | 10KW/7000±500r/min | 25KW/9000±500r/min |
Clutches | 5 Gears/Handle | 6 Gears/Handle |
Max Torque | 13N.m/5500±500r/min | 27N.m/7000±500r/min |
Lamps | Halogen Headlight | LED Headlight |
LED Reflector | LED Reflector | |
LED Turn light | LED Turn light | |
LED Tail light | LED Tail light | |
Display | LCD Meter | TFT Meter |
Carburetor/EFI | DELI | DELI/DELPHI |
