U33
Balanced shaft engine
The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable.
Color switching：
FULL SPEED
Good shock absorption
High precision parts
ABS brake
U33
ANDES MOTOS
Balanced shaft engine
The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable.

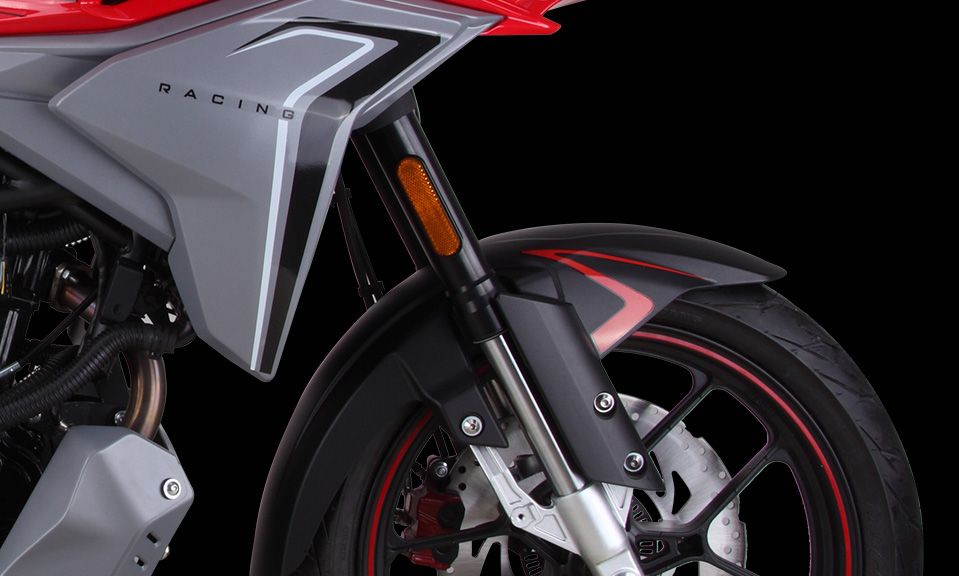

Original shock absorbers
Let the knight experience the feeling of flowing clouds and water while riding.
The front shock absorption adopts hydraulic damping type shock absorption, with moderate rebound damping, while the rear shock absorption adopts central shock absorption, which is more balanced and accurate when turning and bending. Stable curve performance gives excellent playability.

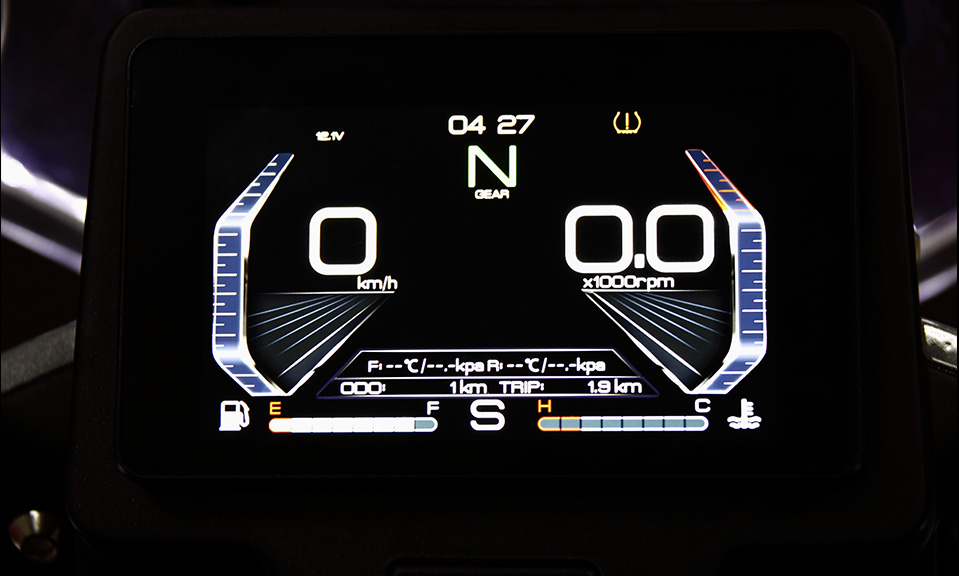

Liquid crystal multi-function instrument
Use for reference the upgrade design of large displacement motorcycle instrument, color adjustable multi-function instrument.

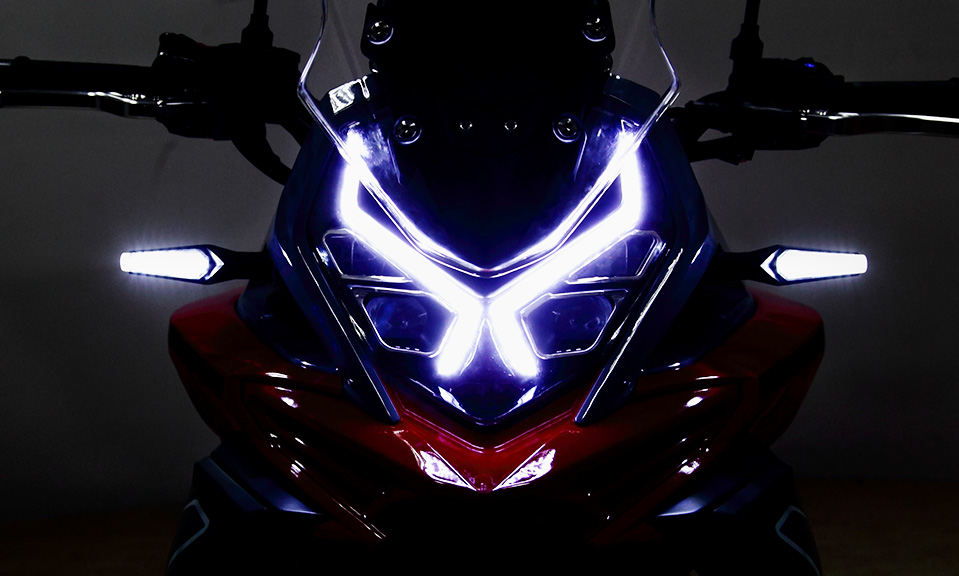

LED circular headlights
The headlights adopt the current LED light source design used in mid to high-end cars, and the white light scattered by the LED not only has a visual effect, but also brings good safety protection.
Extra-long road test
Road test conditions include terrain (mountain, road, gravel, snow, mud, plateau) and climate (-20c to 50C) to ensure vehicle safety and stability.
All models in the Andes have completed 30,000 kilometres of road testing
30,000
km
Ordinary Assembly cars do not do road tests
0
km
0
km
5,000
km
15,000
km
20,000
km
30,000
km

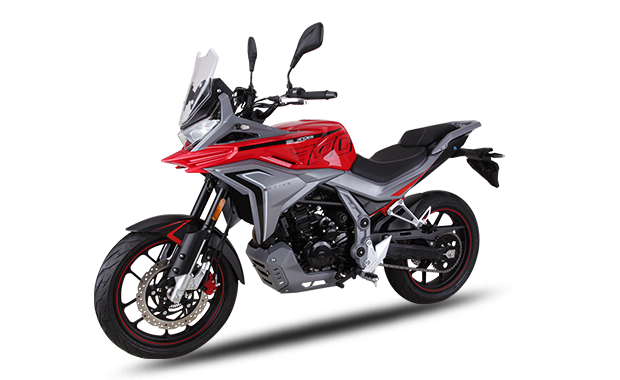

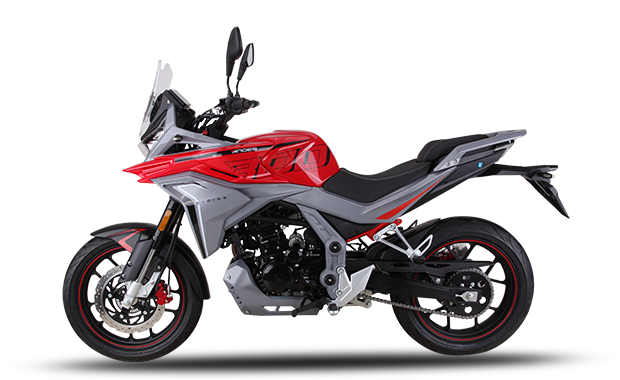

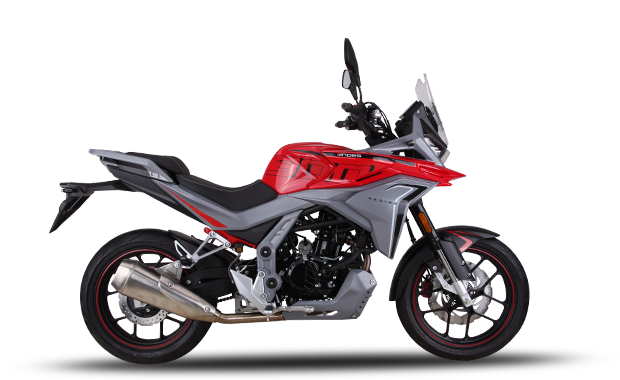

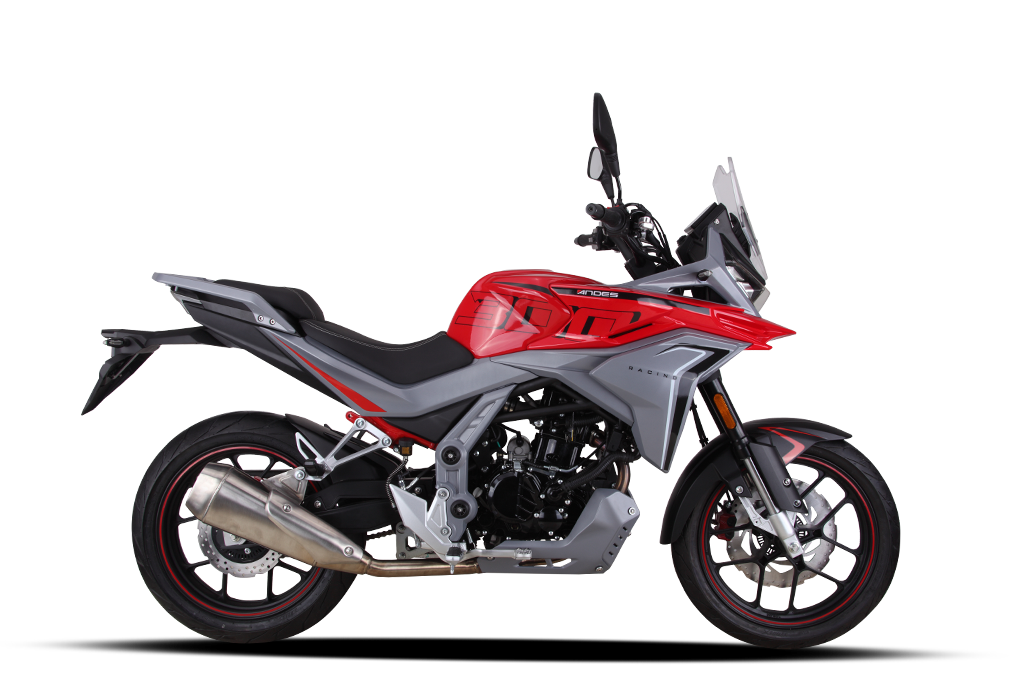

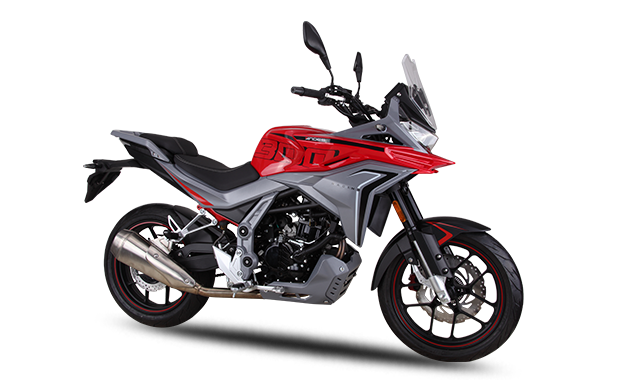

Multi-angle display
Basic parameters
| U33 Gasoline | |
| Dimension | 2130×830×1176mm |
| Wheel Base | 1330 mm |
| Weight | 115kg |
| Front seat height | 790 |
| Rear seat height | 960 |
| Engine | 300cc Water cooling |
| Braking mode | FR Disc & RR Disc / ABS system |
| Minimum Groud clearance | ＞220mm |
| Standard load | 100Kg |
| Maximum load | 150Kg |
| Front suspension | Front：Invert |
| Rear suspension | Rear：Single |
| Wheel | Aluminum |
| Seat | Seperate type |
| Starter | ECU |
| Electric security | / |
| Steering lock | Mechanical |
| Max Speed | ≥120km/h |
| Fuel Capacity（L） | 17L |
| Tyres | FR110/70-17_4PR RR150/60-17_6PR |
| Braking distance | ＜7M（30Km/h） |
| Battery | 12N6.5A-3A |
| Oil consumption | 3.3L/100km |
| Max Power | 19KW(1±5%)/8500r/min(1±1.5%) |
| Clutches | 5 Gears/Handle |
| Max Torque | 24N.m(1±5%)/7500r/min(1±5%) |
| Lamps | LED Headlight |
| LED Reflector | |
| LED Turn light | |
| LED Tail light | |
| Display | TFT Meter |
| Carburetor/EFI | DELI/DELPHI |
