SMX 160

Balanced shaft engine

The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable.

Parameter data

10.2kw

8000r/min

98kM/H

Max Speed

< M(30Km/h)

Braking distance

13.8N·M

6500r/min

BACK

Color switching:

FULL SPEED

Good shock absorption

High precision parts

ABS brake

SMX 160

ANDES MOTOS

Balanced shaft engine

The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable.

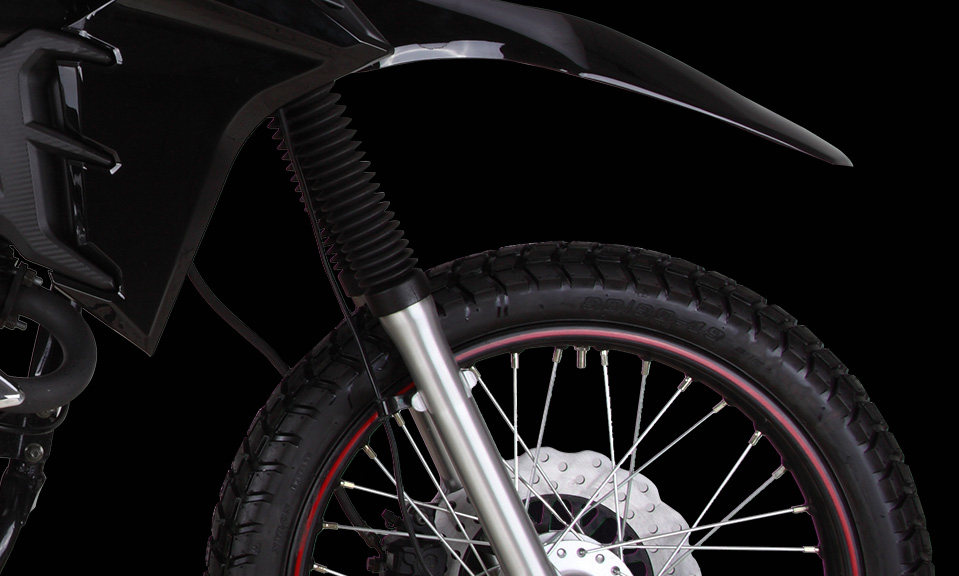

Original shock absorbers

Let the knight experience the feeling of flowing clouds and water while riding.

The front shock absorption adopts hydraulic damping type shock absorption, with moderate rebound damping, while the rear shock absorption adopts central shock absorption, which is more balanced and accurate when turning and bending. Stable curve performance gives excellent playability.

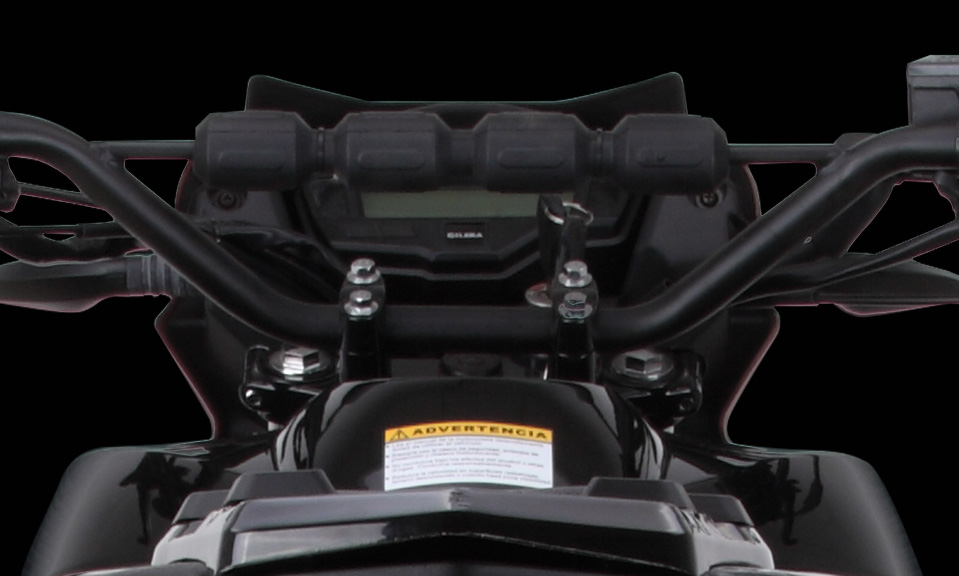

Liquid crystal multi-function instrument

Use for reference the upgrade design of large displacement motorcycle instrument, color adjustable multi-function instrument.

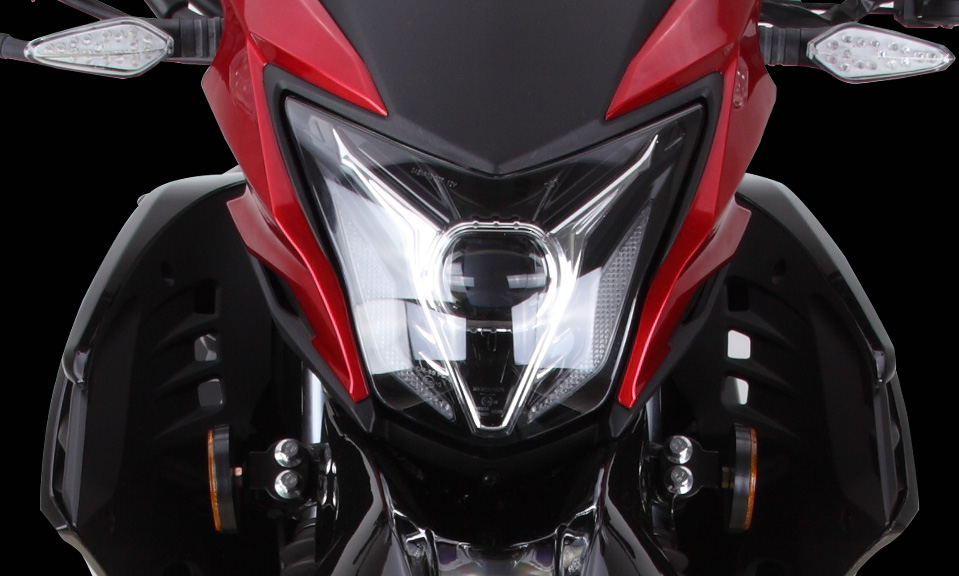

LED circular headlights

The headlights adopt the current LED light source design used in mid to high-end cars, and the white light scattered by the LED not only has a visual effect, but also brings good safety protection.

Extra-long road test

Road test conditions include terrain (mountain, road, gravel, snow, mud, plateau) and climate (-20c to 50C) to ensure vehicle safety and stability.

All models in the Andes have completed 30,000 kilometres of road testing

30,000

km

Ordinary Assembly cars do not do road tests

0

km

0

km

5,000

km

15,000

km

20,000

km

30,000

km

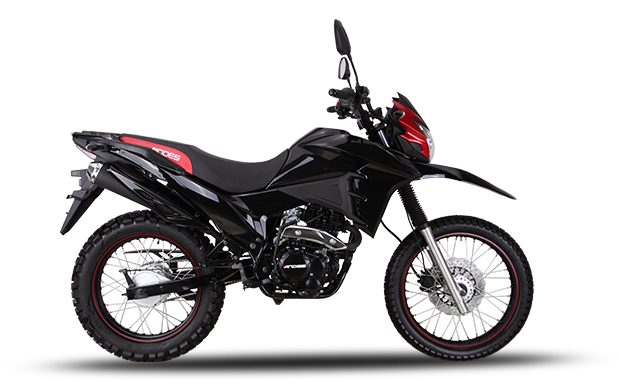

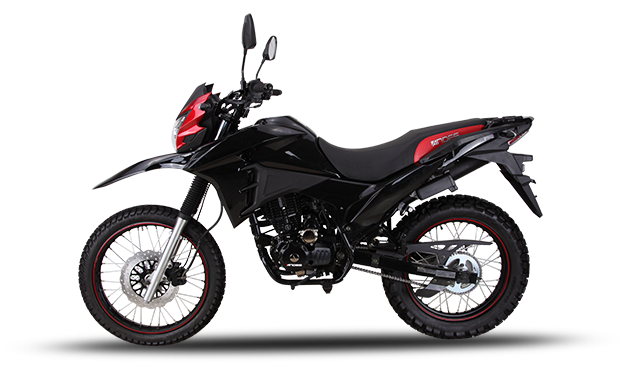

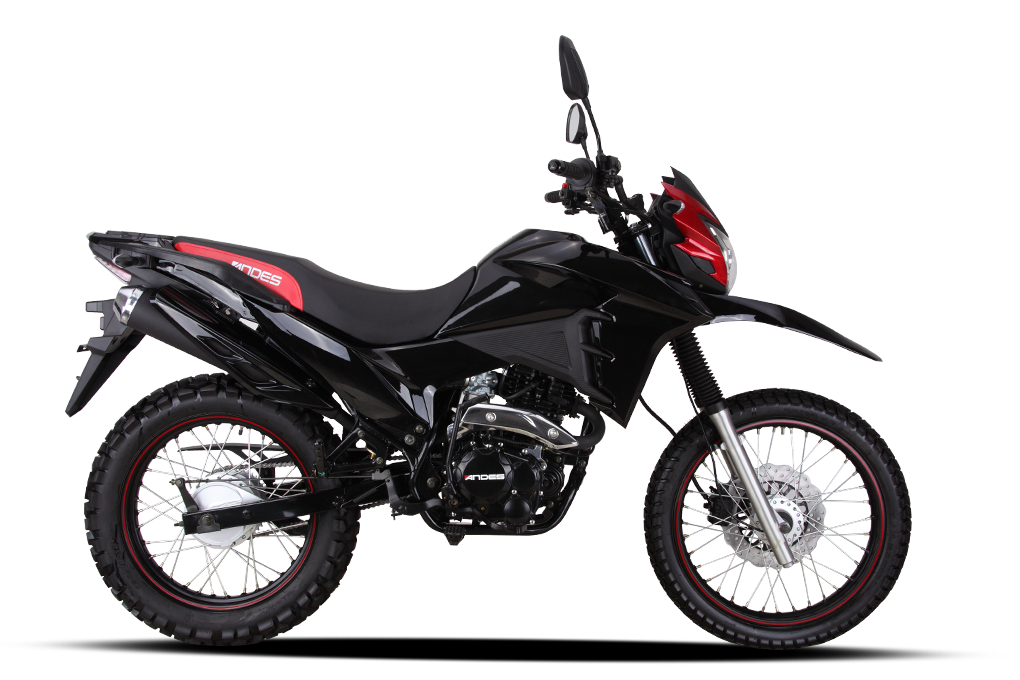

Multi-angle display

Basic parameters

SpecificationCG200 built-in engine
EngineFour stroke
Displacement196ml
Max Power10.2kw/8000r/min
Max Torque13.8N.m/6500r/min
Compression Ratio9.0:1
IgnitionCDI
StartElectric/foot start
TransmissionFive international grades
ClutchManual wet multi plate
LubricationPressure Splash Composite
Dimension2060×845×11260 mm
Wheel Base1370 mm
Weight115kg
Max Load Capacity180kg
Max Speed98km/h
TyresFront 90/90-19, Rear Drum 120/90-18
BrakesFront disc and rear hub brake
Battery12N6.5A-3A
Min. Consumption(L/100km)2.5
Min. Clearance(mm)370
Seat Height(mm)890
Fuel Capacity(L)12
