LANGUAGE : CN
SMX 190
Balanced shaft engine
The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable
Parameter data
10.2kw
8000r/min
98kM/H
Max Speed
< M（30Km/h）
Braking distance
13.8N·M
6500r/min
Color switching：
FULL SPEED
Good shock absorption
High precision parts
ABS brake
SMX 190
ANDES MOTOS
Balanced shaft engine
The engine adopts the built-in balance shaft technology, which can greatly reduce engine vibration and noise under the condition of high speed operation. Improve driving comfort, even if the long driving will not feel uncomfortable

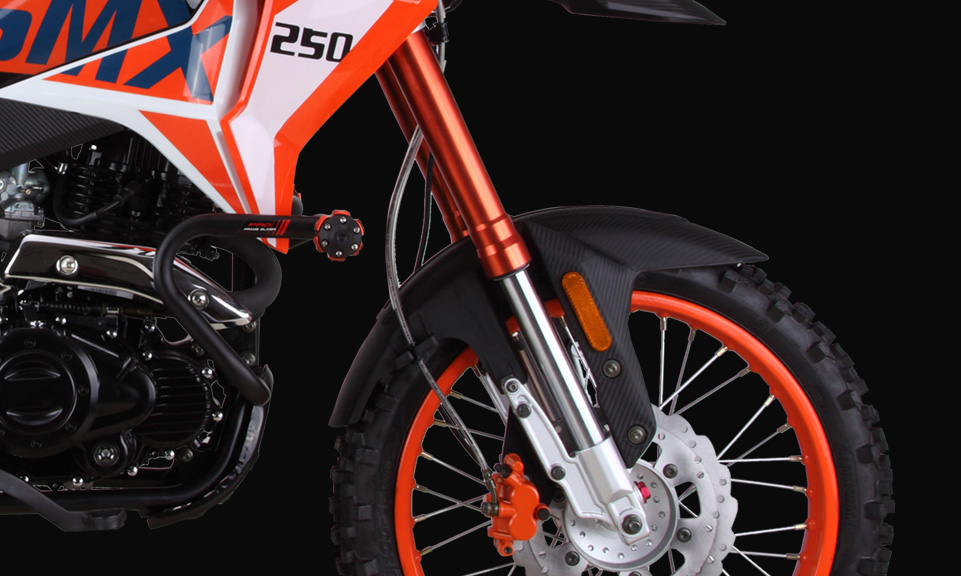

Original shock absorbers
Let the knight experience the feeling of flowing clouds and water while riding.
The front shock absorption adopts hydraulic damping type shock absorption, with moderate rebound damping, while the rear shock absorption adopts central shock absorption, which is more balanced and accurate when turning and bending. Stable curve performance gives excellent playability.

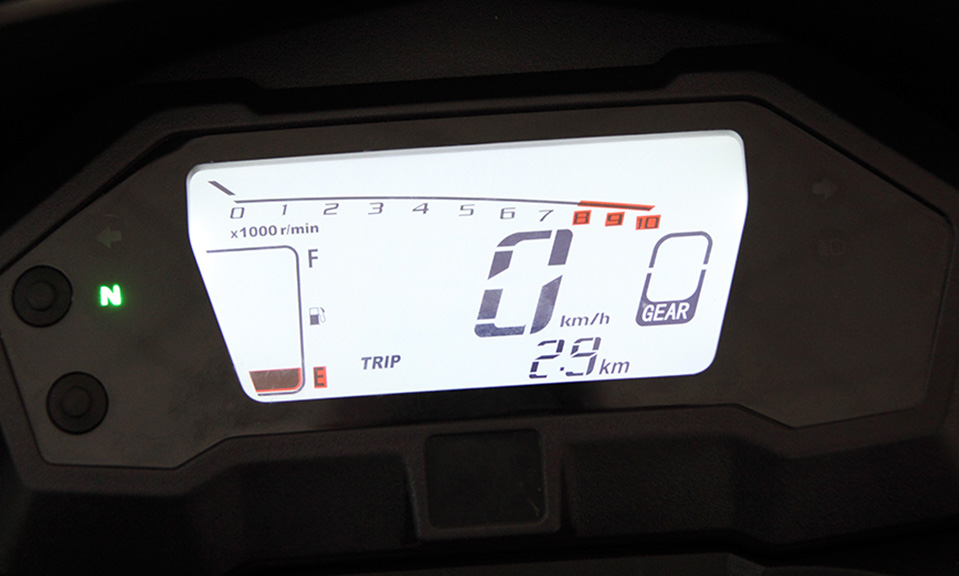

Liquid crystal multi-function instrument
Use for reference the upgrade design of large displacement motorcycle instrument, color adjustable multi-function instrument
LED circular headlights
The headlights adopt the current LED light source design used in mid to high-end cars, and the white light scattered by the LED not only has a visual effect, but also brings good safety protection.
Extra-long road test
Road test conditions include terrain (mountain, road, gravel, snow, mud, plateau) and climate (-20c to 50C) to ensure vehicle safety and stability.
All models in the Andes have completed 30,000 kilometres of road testing
30,000
km
Ordinary Assembly cars do not do road tests
0
km
0
km
5,000
km
15,000
km
20,000
km
30,000
km
Multi-angle display
Basic parameters
| Brazilian off-road 190 (low seater) | Brazilian off-road 190 (high seat) | |
| Specification | CG200 built-in engine | CG250 external engine |
| Engine | Four stroke | Four stroke |
| Displacement | 196ml | 196ml |
| Max Power | 10.2kw/8000r/min | 10.2kw/8000r/min |
| Max Torque | 13.8N.m/6500r/min | 13.8N.m/6500r/min |
| Compression Ratio | 9.0:1 | 9.0:1 |
| Ignition | CDI | CDI |
| Start | Electric/foot start | Electric/foot start |
| Transmission | Five international grades | Five international grades |
| Clutch | Manual wet multi plate | Manual wet multi plate |
| Lubrication | Pressure Splash Composite | Pressure Splash Composite |
| Dimension | 2050×800×1120mm | 2050×830×1160 mm |
| Wheel Base | 1330 mm | 1350 mm |
| Weight | 115kg | 115kg |
| Max Load Capacity | 150kg | 150kg |
| Max Speed | 98km/h | 104km/h |
| Tyres | Front 90/90-19, Rear Drum 110/90-17 | Front 80/100-20, Rear Drum 120/90-18 |
| Brakes | Front disc and rear hub brake | Front disc and rear hub brake |
| Battery | 12N6.5A-3A | 12N6.5A-3A |
| Min. Consumption（L/100km） | 2.5 | 2.5 |
| Min. Clearance（mm） | 240 | 320 |
| Seat Height（mm） | 830 | 880 |
| Fuel Capacity（L） | 12 | 12 |
